PROFESSIONAL DV

Streamcoder : Basic Streaming System


Streamcorder

Realtime MPEG4 Streaming (GY-DV300 + KA-DV300U with PCMCIA card)

1. Shooting

Just start shooting your footage with the GY-DV5000/DV300. Audio and video signals are simultaneously recorded on a Standard DV/MiniDV tape and encoded as an MPEG4/ASF file via the Network Pack. Shooting


2. Transferring Data to a PC

The KA-DV300/KA-DV5000 features built-in MPEG4/ASF encoding and can accept three types of PCMCIA cards. Wireless LAN card for streaming, Wired LAN card for streaming and CF card for ASF file recording

Compatible PCMCIA cards
Transferring Data to a PC

Recording time on CF cards

128M 30 minutes (ASF file)
256M 60 minutes (ASF file)
512M 120 minutes (ASF file)


3. NetCasting

Distribute your sound and images in realtime over a local network or the Internet via a PC with JVC's "Streamproducer" streaming software installed. NetCasting

For more information about Streamproducer


4. Viewing

Images and sound can be seen and heard at the specified website via Internet or Intranet using Windows Media Player (ver. 7.1 or later) and a web browser (IE 5.0 or later).

* Streaming quality depends on network conditions.
Viewing

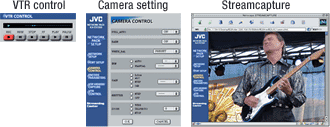

Remote Setting

Camera setting, VTR control and live image capture are all possible from a remote location using only a web browser. No custom software is necessary.

Remote Setting
Enlarge image



Streamcorder Applications
